Redirects & 404 Logger for Magento 2

What you get

Panth Redirects, 301/302 Redirects & 404 Logger for Magento 2 (Hyva + Luma)

Complete redirect and 404 management for Magento 2. Declare a literal or regex rule in the admin, or let the module auto-create a 301 the moment a product, category or CMS page is deleted. Every URL request is checked against the Matcher before Magento's own routing, so live redirects never 404 first. Bulk-load rules from CSV with loop detection, export them back, schedule a cleanup cron, and let the 404 logger + cluster analyser surface the dead-link patterns that actually need a redirect. Works identically on Hyva and Luma.

Redirect hygiene is one of the highest-leverage on-site SEO signals a store owns, but in native Magento it lives across three different places (catalog URL rewrites, CMS URL rewrites, .htaccess) and has no 404 visibility at all. Panth Redirects unifies it in a single admin surface with full HTTP status-code coverage, CSV tooling, and the observability needed to keep the rule set clean as the catalogue churns.

Preview

Live walkthrough

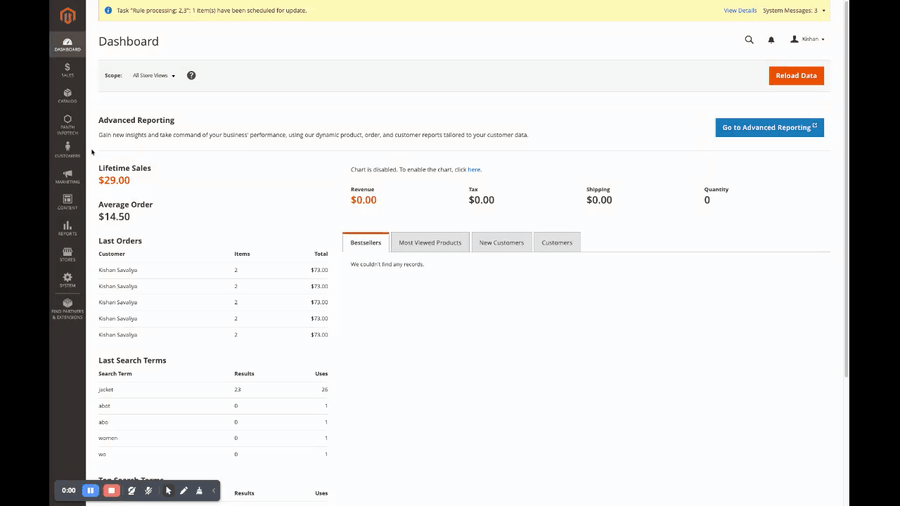

End-to-end admin flow, land on the dashboard, open Panth Infotech → Manage Redirects, add a rule, save, import a CSV, review the 404 log and the 404 cluster view.

Admin

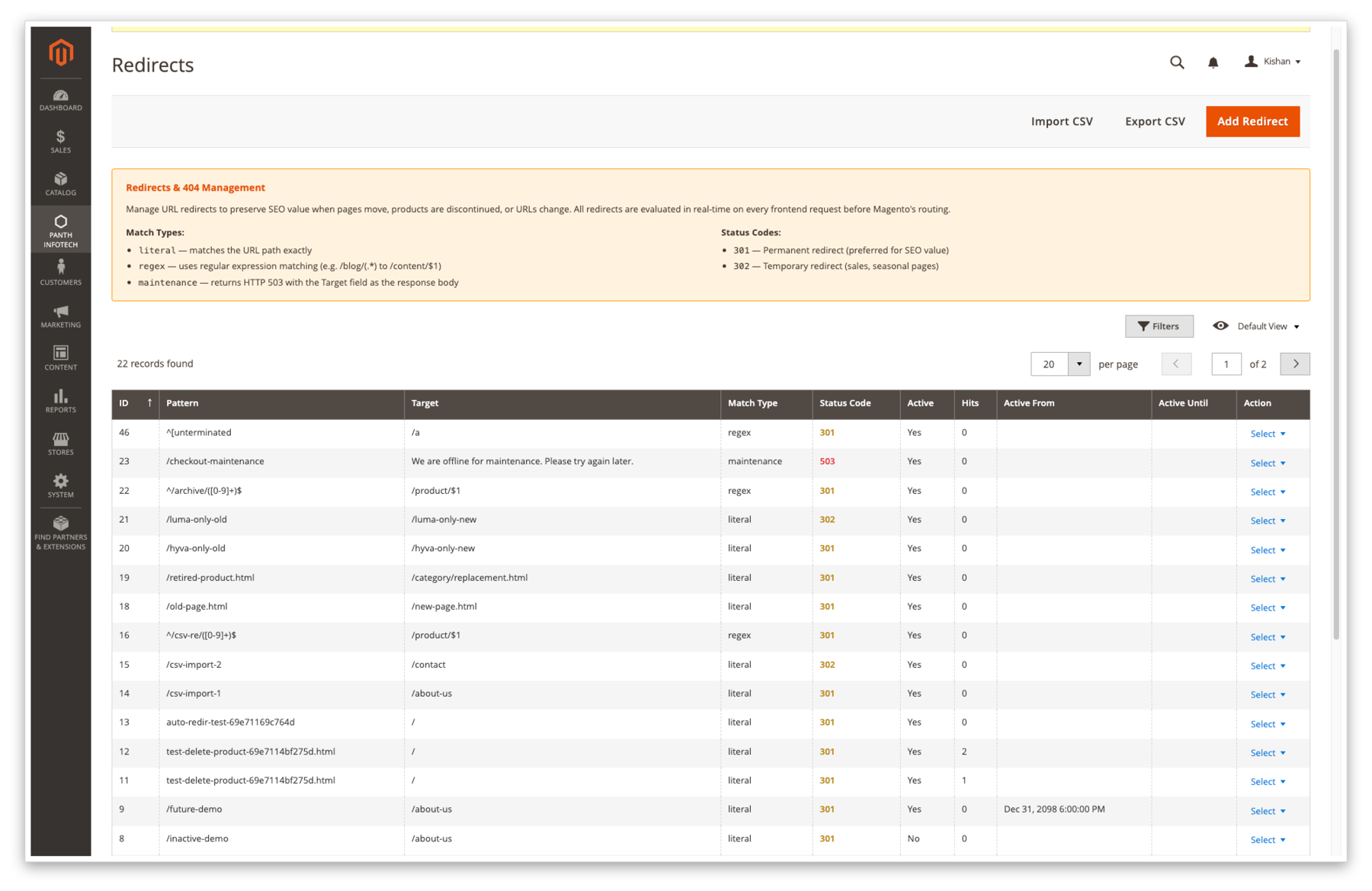

Redirects grid, every rule at a glance with colour-coded status codes, match type, store scope, per-row hit counter and scheduling window. Import CSV, Export CSV, and Add Redirect are one click away.

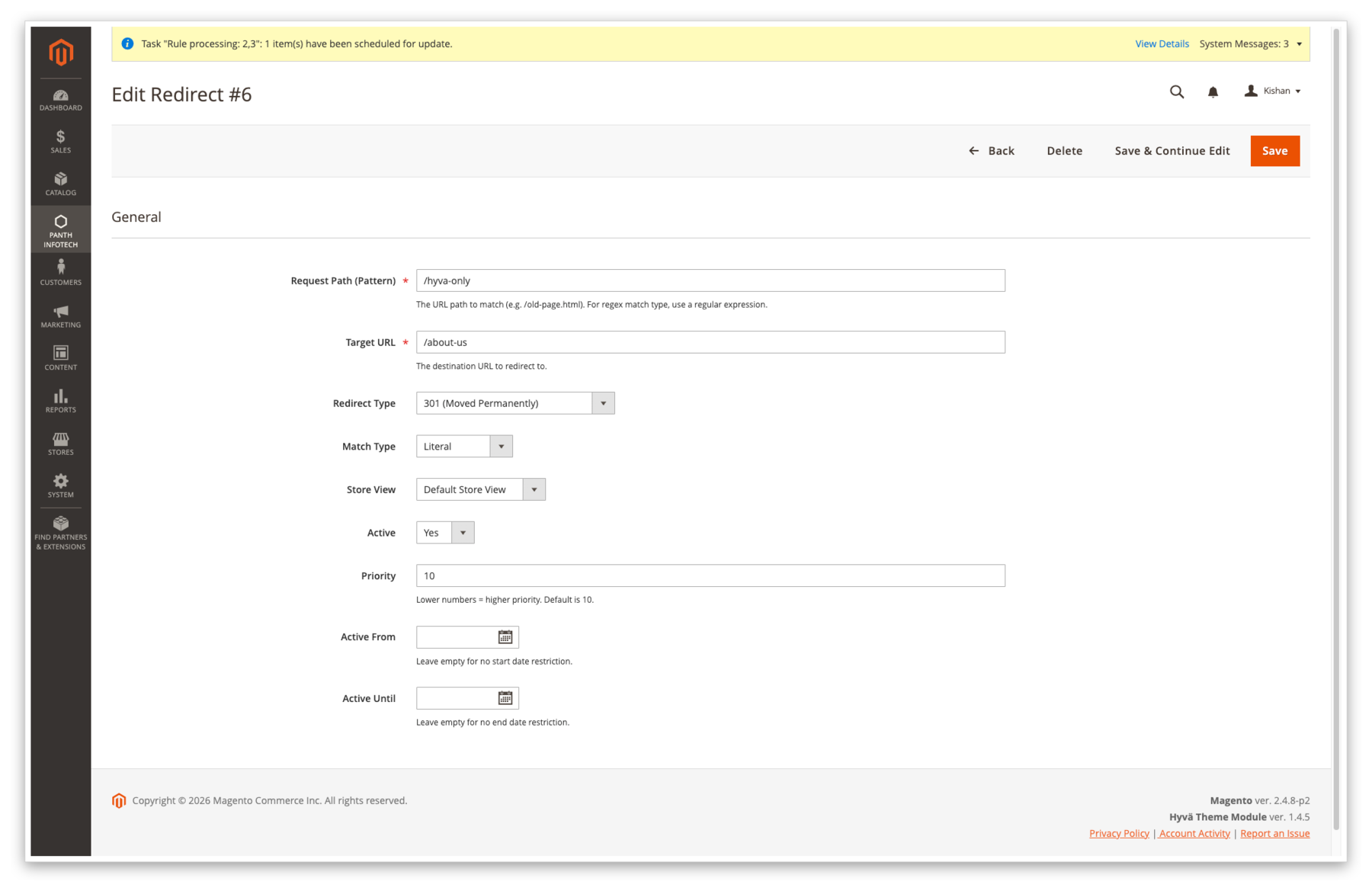

Edit form, Literal 301, map /hyva-only to /about-us at store-view scope with priority 10 and no scheduling restriction.

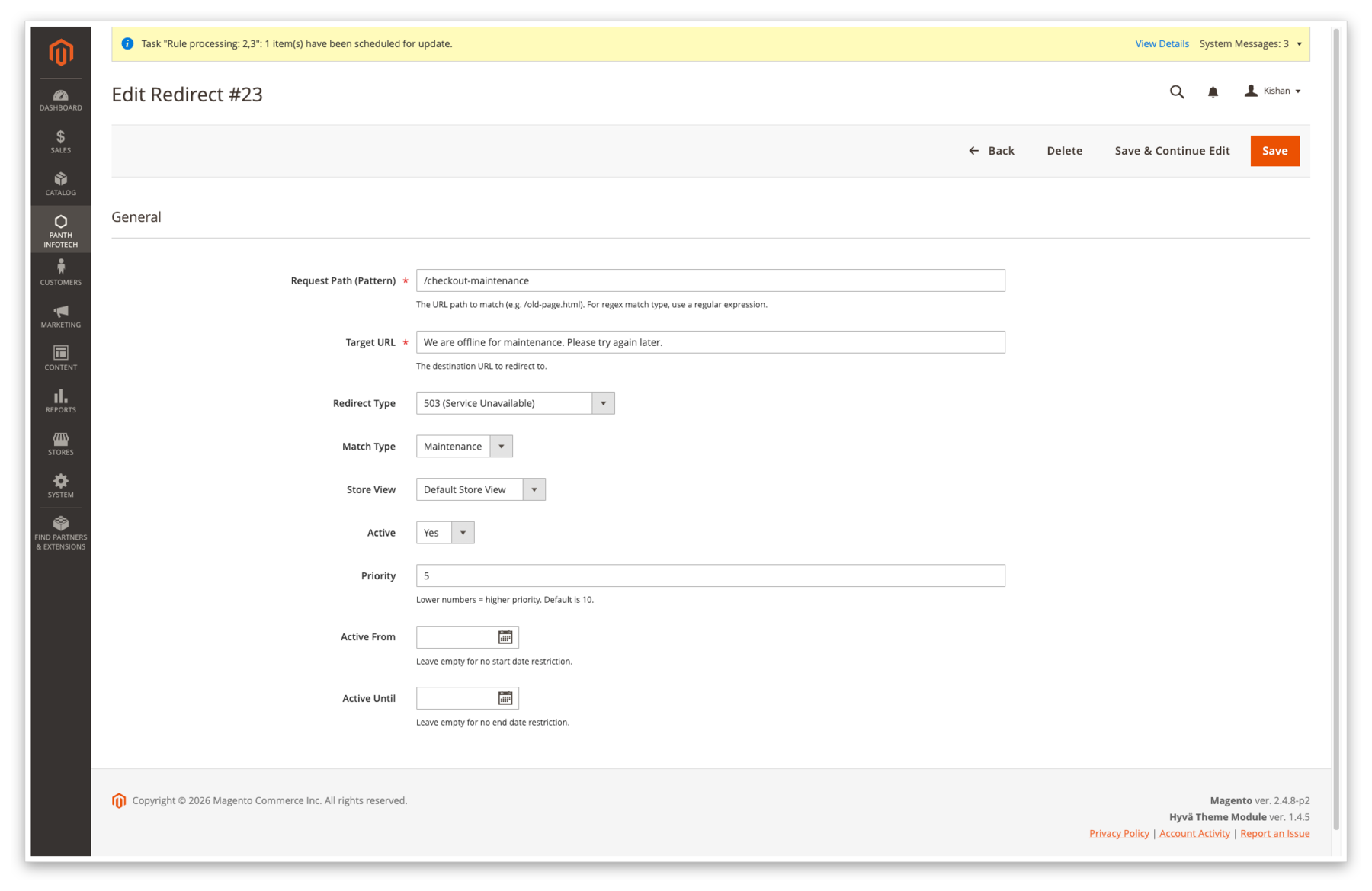

Edit form, Maintenance 503, serve We are offline for maintenance. Please try again later. with HTTP 503 + Retry-After: 3600 when the match fires. The Redirect Type dropdown offers the full set of supported codes.

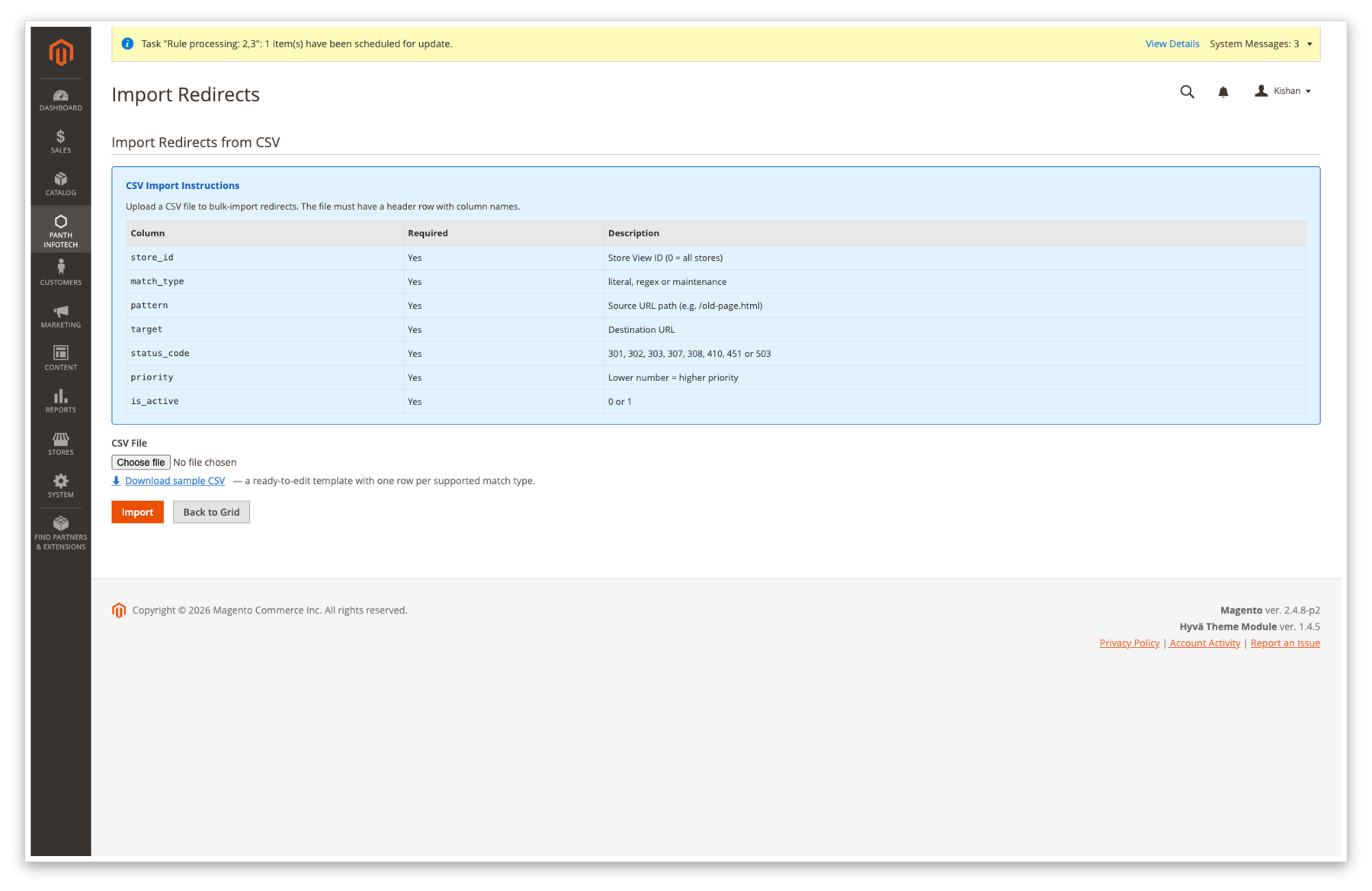

CSV Import, upload a header-first CSV to bulk-import redirects. A Download sample CSV link emits a ready-to-edit template with one row per supported match type so the column order and value shape are obvious before you upload.

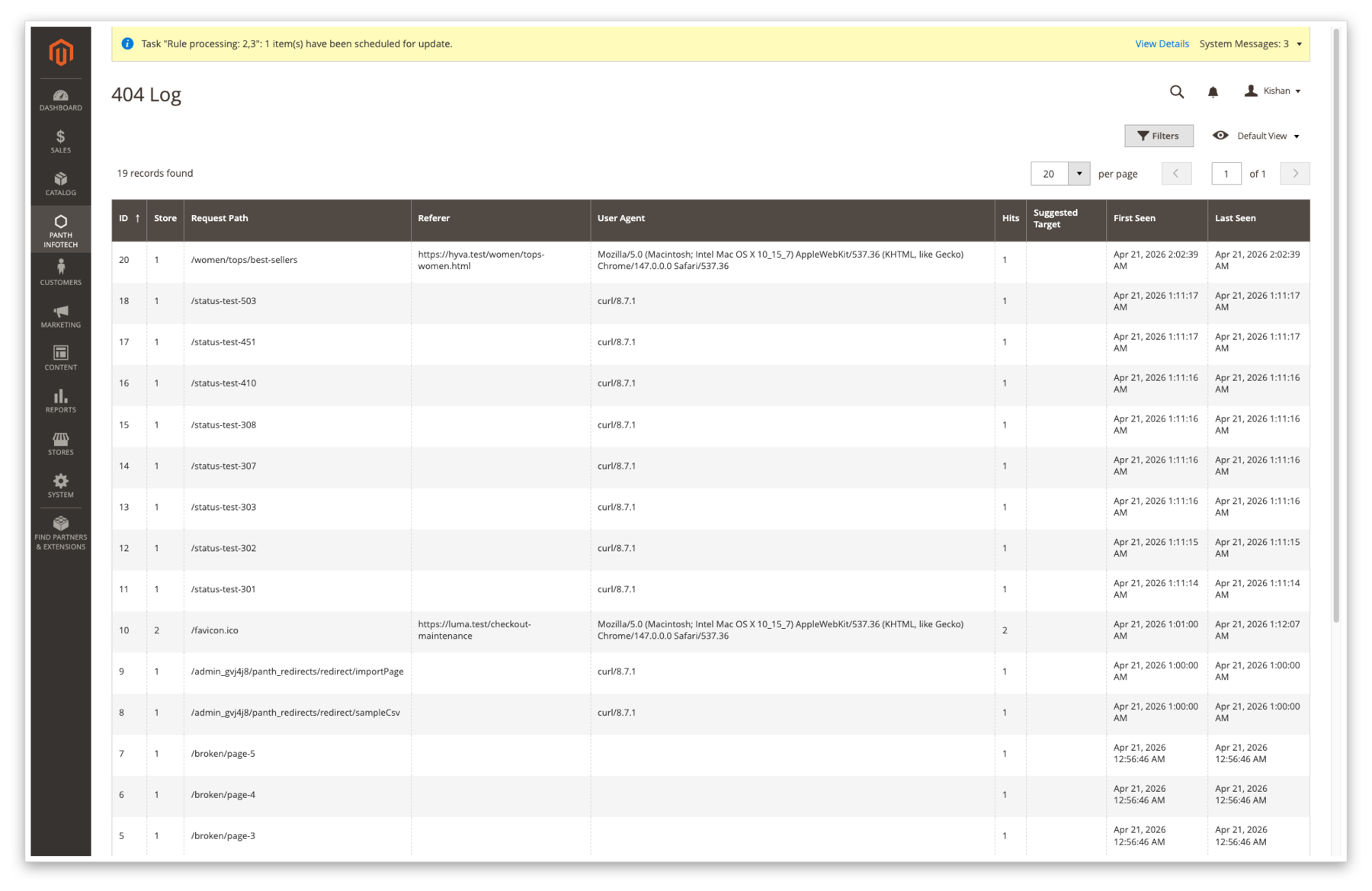

404 Log, every unmatched URL, de-duplicated by (store_id, sha256(path)), with referer, user-agent, hit count and first/last-seen timestamps.

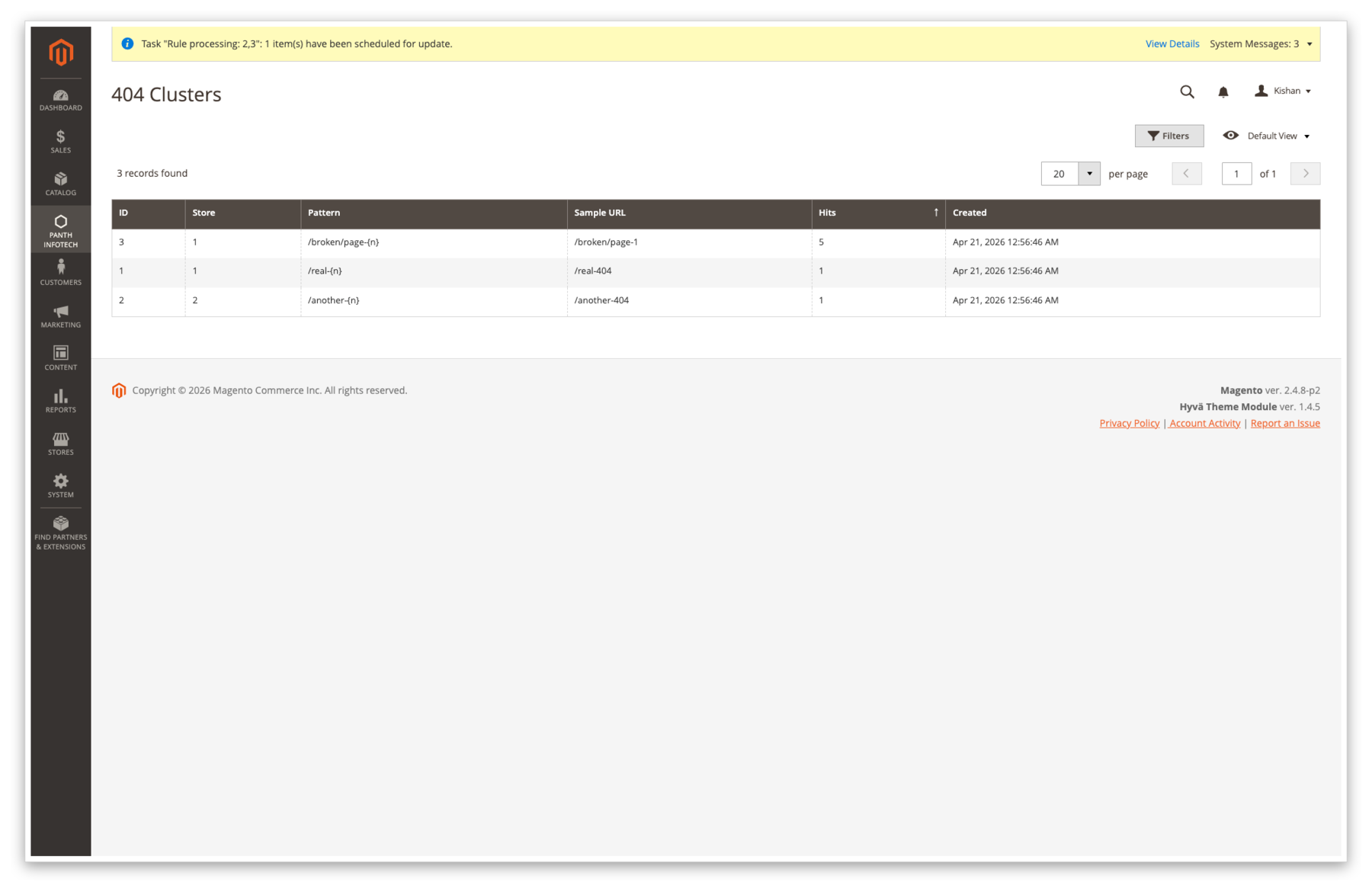

404 Clusters, the clustering cron walks the last seven days of 404 hits, collapses /broken/page-1, /broken/page-2, … into /broken/page-{n} and writes the top offenders with sample URLs so a single redirect rule can clean up an entire family of dead links.

Features

How It Works

Six cooperating pieces:

1. Redirects grid at panth_redirects/redirect/index, standard UI-component listing backed by the panth_seo_redirect table with the colour-coded status-code column.
2. Admin form at panth_redirects/redirect/edit/id/<ID>, Match Type switches between Literal / Regex / Maintenance; Redirect Type is populated from Panth\Redirects\Model\Config\Source\StatusCode, the single source of truth for allowed codes.
3. Matcher, two-tier lookup. Tier 1 is a hash table for literal paths (O(1)). Tier 2 is a priority-ordered regex list (linear). Loaded once per request, cached in Magento cache under tag panth_redirects_table, invalidated on rule save / import / cron.
4. Predispatch observer on controller_action_predispatch, consults the Matcher before Magento dispatches the controller, so live redirects never cause a 404 first. Branches on the status code: 3xx → setRedirect(), 4xx/5xx → setStatusHeader() + body.
5. NoRoute observer + NoRouteHandler plugin, log every unmatched path to panth_seo_404_log, but consult the Matcher first so a path that is about to redirect is never counted as a 404.
6. Two crons, panth_redirects_404_cluster (daily) aggregates 404s into cluster patterns; panth_redirects_redirect_cleanup (weekly) deletes expired scheduled rules and stale auto-generated rows.

Managing Redirects

Open Admin → Panth Infotech → Manage Redirects to reach the grid.

Fields

Mass actions

Select rows and choose Enable, Disable or Delete from the grid mass-action menu.

CSV Import / Export

Header

store_id,match_type,pattern,target,status_code,priority,is_active

Example

store_id,match_type,pattern,target,status_code,priority,is_active
0,literal,/old-page.html,/new-page.html,301,10,1
1,literal,/hyva-only-old,/hyva-only-new,301,20,1
2,literal,/luma-only-old,/luma-only-new,302,20,1
0,regex,^/archive/([0-9]+)$,/product/$1,301,30,1
0,maintenance,/checkout-maintenance,"We are offline for maintenance. Please try again later.",503,5,1

Click Download sample CSV on the Import page to grab this exact template.

CLI import

bin/magento panth:redirects:import file.csv # live import
bin/magento panth:redirects:import file.csv --dry-run # validate only, no DB writes

Every row is validated against:

• match_type ∈ {literal, regex, maintenance}
• status_code ∈ {301, 302, 303, 307, 308, 410, 451, 503}
• pattern non-empty; regexes must compile
• target rejected if it uses javascript:, data: or vbscript: schemes
• Literal rules run the loop detector, a chain that points back at itself is skipped with an error, never persisted

Export

Export CSV on the grid streams every rule (respecting any active filters) through the ImportExport service's exportToStream method.

404 Log & Cluster Analysis

404 Log

Every request that doesn't match a catalogue entry, a CMS page or a redirect rule is written to panth_seo_404_log. Rows are de-duplicated by (store_id, sha256(path)) so a crawler hammering the same URL just increments hit_count instead of writing N rows. Referer and user-agent are stored for attribution and escaped at render time.

Per-IP rate limiting uses APCu when the extension is available (shared counter across FPM workers) and falls back to a per-worker static when it isn't, so the logger can never saturate the table under a DoS-y flood of 404s.

404 Clusters

The panth_redirects_404_cluster cron runs once a day. It walks the last seven days of panth_seo_404_log, groups paths by a normalised pattern (digits → {n}, UUIDs → {uuid}, slug segments collapsed when cardinality is high) and writes the top 500 clusters to panth_seo_404_cluster. From the admin grid you can see the hit count + a sample URL, then create one regex redirect rule that cleans up the entire family.

Security

• Admin controllers extend Magento\Backend\App\Action. Every CRUD path declares its own ADMIN_RESOURCE constant and ACL is enforced via _isAllowed().
• Save, MassDelete, MassStatus and Import implement HttpPostActionInterface, GET is rejected. Form-key validation runs on every POST.
• Every request parameter is cast to an expected type and compared against an explicit allow-list (match type, status code) before it reaches the database layer.
• All DB queries use parameter placeholders or Zend_Db_Expr. No user-controlled string concatenation in the redirect or 404 code paths.
• Regex rules are compiled with @preg_match wrapped in try / catch. A malformed rule logs a warning and is skipped; it can never crash the storefront.
• CSV import validates extension, MIME type, file size, reads via fgetcsv() on a file handle (never str_getcsv on a raw body), strips formula-injection characters (= + - @ \t \r) at the head of every cell, rejects dangerous URI schemes in the target column and runs loop detection before inserting.
• 404 log entries are escaped with escapeHtml() in the admin grid, so an attacker-submitted referer / user-agent can never execute script on an admin's browser.
• External redirect targets are only permitted if the host matches one of the configured store base_url values. Open-redirect to an arbitrary domain is blocked at dispatch time.
• RedirectGuard drops non-GET, AJAX, admin, API and static-asset requests before the Matcher even runs, so redirects only apply to actual storefront navigations.

Troubleshooting

A rule is live in the grid but the frontend still 404s

1. bin/magento cache:clean config full_page, the Matcher caches the compiled rule table under panth_redirects_table and re-reads on next request.
2. Confirm Enable module is Yes at the store-view scope you are browsing.
3. Confirm the rule's Active flag is Yes.
4. If you use Active From / Active Until, make sure now falls within the window.
5. Test with a plain curl GET, curl -k -o /dev/null -w '%{http_code} → %{redirect_url}\n' https://your-store.test/old-path. If the HTTP response is the expected 3xx/4xx/5xx, your browser is just caching the old 404; hard-refresh.

curl -I returns 404 but a plain GET redirects correctly

That is intentional. RedirectGuard allows GET only, HEAD/POST/PUT are skipped on purpose so the redirect engine can't interfere with API and form-post flows.

410 / 451 responses still send a Location header

Make sure you are running ≥ 1.0.1. Earlier releases always called setRedirect(); 1.0.1+ branches on status code and emits setStatusHeader() + body (no Location) for 4xx/5xx rules.

Two literal rules share the same pattern and the wrong one wins

Fixed in 1.0.1, the Matcher now keeps the first row returned by the DB (sorted priority ASC, redirect_id ASC) and refuses to let a higher-priority-number row overwrite it in the in-memory hash. Upgrade and flush cache.

404 log is recording successful redirects

Fixed in 1.0.1, both the cms_index_noroute observer and the NoRouteHandlerInterface::process plugin now consult the Matcher first and skip logging when a redirect rule is about to fire. Upgrade.

404 log grows too fast

Lower panth_redirects/logging/rate_limit_per_second. If you are being crawled aggressively, also install APCu so the rate limiter uses a shared counter instead of the per-worker fallback.

Compatibility

Installation

composer require mage2kishan/module-redirects
bin/magento module:enable Panth_Core Panth_Redirects
bin/magento setup:upgrade
bin/magento setup:di:compile
bin/magento cache:flush

Verify

bin/magento module:status Panth_Redirects
# Module is enabled

Visit Admin → Panth Infotech → Manage Redirects to see the empty grid.

Configuration

Navigate to Stores → Configuration → Panth Infotech → Redirects & 404s.

Each setting is resolved at store-view scope, so link budgets, auto-redirect targets and 404 logging can differ per store.
